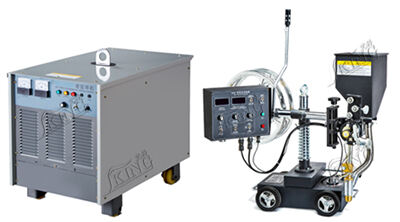

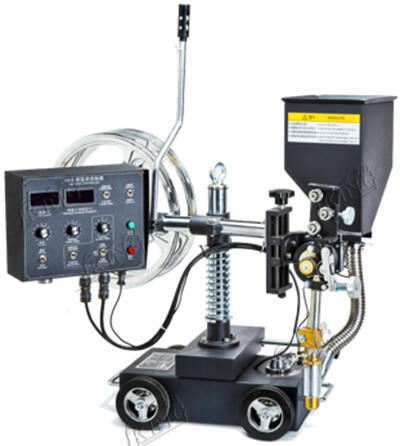

Trolley type submerged arc welding system (industrial universal type)

Description:

This welder is a type of equipment that is widely used because it can be adapted to the welding needs of many different materials. This type of submerged arc welder is capable of welding carbon structural steel, stainless steel, heat-resistant steel, and its composite steels, as well as being suitable for the production of light-weight, medium-weight, and heavy-weight components. Designed for simplicity and durability, this equipment can be used in a wide range of welding work environments in steel, shipbuilding, automotive manufacturing, and more.
Efficiency, high performance, stability and ease of operation

Applications:

It can be used to weld butt welds, lap welds, fillet welds, etc. This kind of weld can be located in the horizontal plane or with the horizontal plane into an inclined angle of not more than 10 ° inclined surface. Weldable steel types include carbon structural steel, low alloy structural steel, stainless steel, heat-resistant steel and its composite steel.

1、Compact and flexible, travelling smoothly, can be applied to a variety of welding scenes.

2、Equipped with transverse and longitudinal adjusting mechanism and multi-angle variable position wire feeding mechanism, convenient and flexible adjustment, suitable for multi-position welding.

Specifications:

1.1.1 MZ-F Series Submerged Arc Welding Power Source

1.1.2 Welding System Specifications

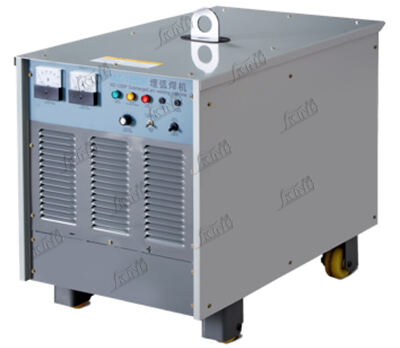

MZ-F Series Submerged Arc Welding Power Source

Competitive Advantage:

1、Better operation flexibility, suitable for diversified needs of welding work.

2、Able to weld low alloy, high strength steel plate and other materials that require deeper penetration and high current.

3、Weld seam quality is more stable and smooth surface, suitable for welding high requirements of steel structure.

Tag:

MZ-F series submerged arc welding power supply features

MZ-F series submerged arc welding machine can weld carbon structural steel, low alloy structural steel, stainless steel, heat-resistant steel and its composite steel. The power supply adopts silicon controlled rectification, which can quickly and automatically compensate for the network fluctuation to ensure the stability of the arc and convenient adjustment of the output current.

MZ-F submerged arc welding machine introduces three-phase circuit minimum trigger angle protection control method, so the equipment can also provide DC output for steelmaking and rapid quenching equipment, which better makes up for the shortcomings of the first generation products. The rated welding current of the welding machine corresponds to the corresponding rated load duration rate, when the load duration rate increases, the maximum output current of the welding machine decreases accordingly.
