Trolley type submerged arc welding system (industrial heavy-duty)

Description：(Industrial Heavy Duty)

This trolley-type submerged arc welding machine meets the welding needs of medium and thick steel plates and is also designed for use in large-scale engineering projects such as thicker structural components. It is easy to operate.

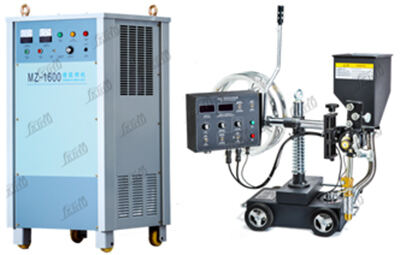

This welding system is a submerged arc automatic welding machine composed of an MZ series arc welding power source and a WT-MZ light trolley.

It is equipped with a strip electrode cladding head, a narrow gap head, an operator, a positioner, a roller frame, a weld tracking device, etc., and can form a fully automatic arc welding workstation.

Specifications：

Trolley Type Submerged Arc Welding Machine (Industrial Heavy-Duty)

1.1.1 WT-MZ Submerged Arc Welding Trolley

1.1.2 MZ Series Submerged Arc Welding Power Supply

Competitive Advantage:

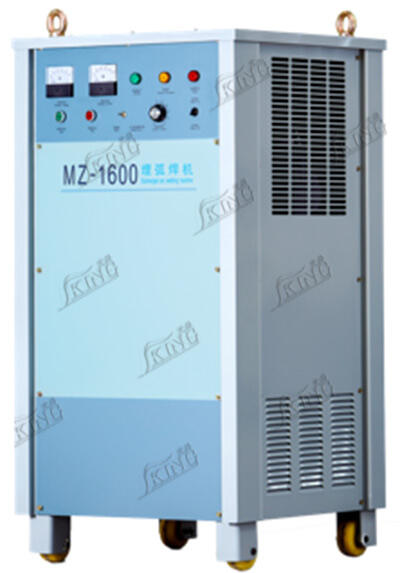

Features of MZ Series Arc Welding Power Supply:

MZ series submerged arc welding power supply adopts thyristor control technology, which can quickly and automatically compensate for network fluctuations,to ensure the stability of the arc and convenient adjustment of the output current. The introduction of the three-phase circuit minimum trigger angle protection control method
can better control the dynamic characteristics of the power supply. Therefore, this equipment can also provide DC output for steelmaking and rapid quenching equipment, which better makes up for the shortcomings of the first generation of products and is particularly suitable for submerged arc welding processes with variable speed wire feeding.

1. This series of welding machines is mainly used for welding various steel plate structures with grooves or no grooves, lap welds, fillet welds, etc. This type of weld can be located on a horizontal or inclined surface with an inclination angle of no more than 10 with the horizontal plane. It can weld carbon structural steel, low alloy structural steel, stainless steel,heat-resistant steel and its composite steel, etc.

2. This series of welding machines fully adopts the latest technology and components, and has stable operation and convenient operation. Its main performance is much better than the old MZ-1000 and MZ-1-1000 submerged arc welding machines.

3. It is especially suitable for welding H-beams and plates in the steel structure industry.

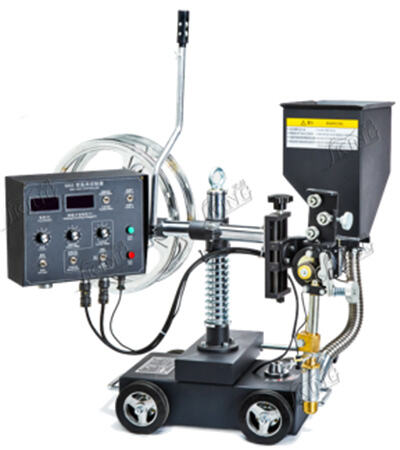

WT-MZ welding trolley features:

It can be used to weld butt welds, lap welds, fillet welds, etc. Such welds can be located on a horizontal plane or an inclined plane with an inclination angle of no more than 10° to the horizontal plane.
The types of steel that can be welded include carbon structural steel, low alloy structural steel, stainless steel, heat-resistant steel and its composite steel, etc.

1. It is small and flexible, walks smoothly, and can be used in a variety of welding scenarios.

2. It is equipped with a horizontal and longitudinal adjustment mechanism and a wire feeding mechanism with multi-angle displacement, which is easy and flexible to adjust,suitable for multi-position welding.

Applications:

1. Steel Structure Fabrication
Suitable for welding H-beams, box beams, bridges, and large structural components.Ensures high-strength, efficient, and stable weld joints for heavy steel structures.
2. Shipbuilding & Offshore Engineering
Used for longitudinal and transverse seam welding of ship hulls and deck plates.Provides uniform, corrosion-resistant welds suitable for marine environments.
3. Pressure Vessels & Tank Manufacturing
Ideal for welding longitudinal and circumferential seams of thick plates.Ensures high-strength and leak-free welds for industrial tanks and vessels.
4. Pipelines & Pipe Piles
Applicable for large-diameter pipe welding in oil, gas, and chemical industries.Delivers consistent and smooth weld seams for long-term sealing performance.
5. Heavy Machinery & Equipment Fabrication
Used in welding heavy-duty frames, cranes, and mining machinery components.Improves productivity and weld quality for large industrial assemblies.
6. Wind Power & Energy Equipment
Applied to tower sections, supporting frames, and energy system components.Supports continuous welding for large and thick workpieces.
7. Railway & Bridge Construction
Suitable for welding steel beams and load-bearing bridge structures.Guarantees strong, durable, and precise welds for infrastructure projects.
