Efficient trolley type double arc double wire submerged arc welding system

System Description

Achieve efficient welding, which is 2.2 times more than single-wire submerged arc welding. The system can be used for double arc and double wire submerged arc welding, and can also be used for single wire submerged arc welding. This welding machine is an efficient and reliable modern welding system, which can be widely used in various fields of industrial manufacturing.

Use

1: To further realize the high-efficiency welding of H-shaped steel/column web with large penetration.

2: To further realize the efficient welding of large box column/beam filling.

3: To further realize the efficient welding of the longitudinal and circular joints of the cylinder.

4: To further achieve efficient welding of medium and thick plate splicing.

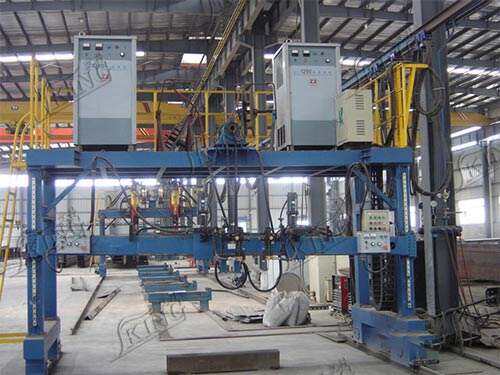

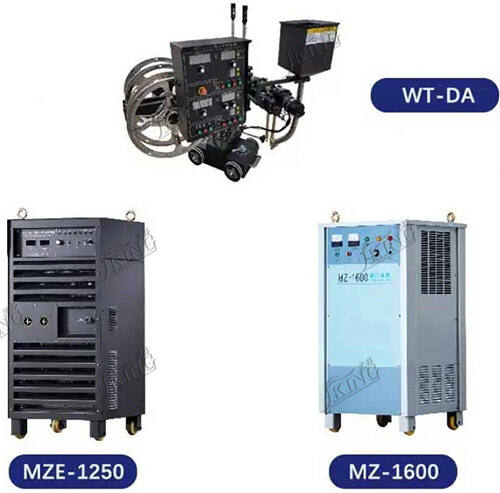

A set of double-arc and double-wire automatic submerged arc welding system is composed of a MZE-1250 AC square wave submerged arc welding power source, a MZ-1250 or 1600 DC submerged arc welding power source, and a WT-DA double-wire submerged arc welding car.

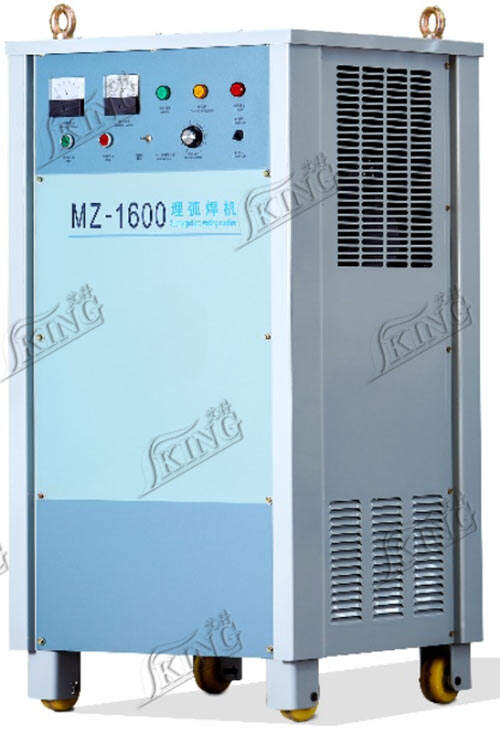

Dc submerged arc welding power supply characteristics

The minimum trigger Angle protection control method of three-phase circuit is introduced in MZ submerged arc welding machine to control the dynamic characteristics of the power supply. Therefore, the equipment can also provide DC output for steelmaking and rapid quenching equipment, which makes up for the shortcomings of the first generation of products, and is especially suitable for the submerged arc welding process of variable speed wire feeding. The rated welding current of the welder corresponds to the rated load persistence rate. When the load persistence rate increases, the maximum output current of the welder decreases accordingly. If the load persistence rate is increased from 60% to 100%, the maximum output current is 0.7746 times of the rated welding current.

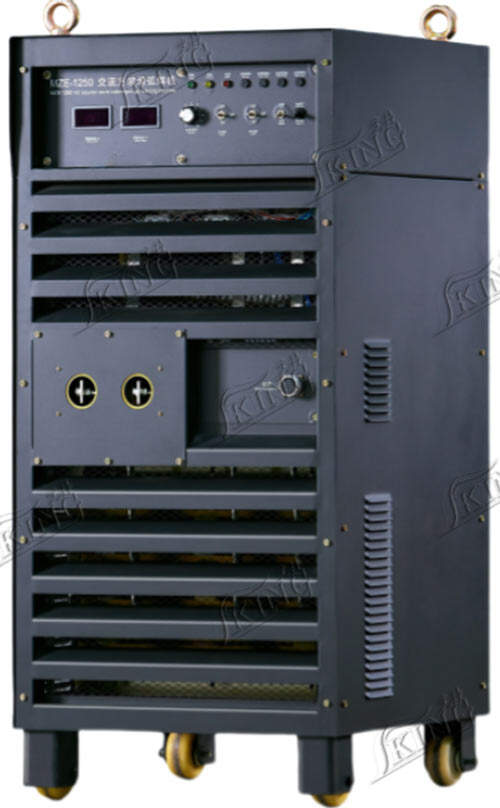

Ac submerged arc welding power supply characteristics

MZE AC square wave submerged arc welding machine is an efficient submerged arc welding equipment with reduced AC square wave output. When a single power supply is used, it can perform single wire submerged arc welding, surfacing with pole, narrow gap submerged arc welding, manual arc welding, and can also be combined with DC or AC submerged arc welding power supply ((DC+AC) or (AC+AC) double wire, multi-wire efficient submerged arc welding system.

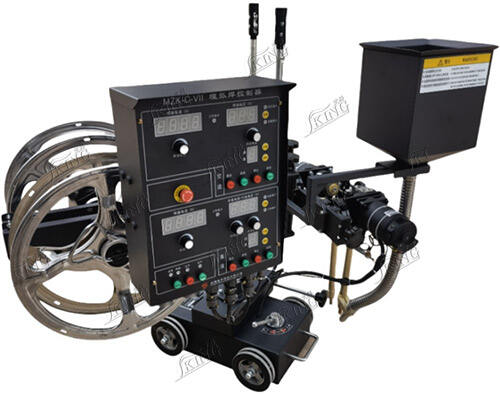

WT-DA double wire submerged arc welding car features

It can be used for filling welding and surface surfacing welding, and can also be used for welding various steel plate structures with or without groove butt welds, lap welds, fillet welds, etc. This kind of weld can be located in the horizontal plane or the inclined surface with an inclination Angle of no more than 10°, and the steel types can be welded include carbon structural steel, low alloy structural steel, stainless steel, heat-resistant steel and its composite steel

Quick Detail:

High-Efficiency Welding: Over 2.2 times more efficient than single-wire submerged arc welding.

Versatile Welding Options: Supports dual-arc dual-wire and single-wire submerged arc welding.

Reliable & Modern System: Designed for industrial manufacturing applications.

Components: Includes one MZE-1250 AC square wave submerged arc welding power source, one MZ-1250 or MZ-1600 DC submerged arc welding power source, and one WT-DA dual-wire submerged arc welding carriage.

Description:

This automated dual-arc dual-wire submerged arc welding system delivers high efficiency and precision, making it ideal for heavy-duty industrial applications. The MZ DC submerged arc welding power source features advanced three-phase circuit control to enhance dynamic characteristics, ensuring stable power output. The MZE AC square wave welding power source provides high-performance AC welding with support for single-wire, narrow-gap, overlay, and manual arc welding, and can be combined with DC or AC sources for multi-wire welding configurations.

The WT-DA dual-wire submerged arc welding carriage is designed for efficient filling and overlay welding, supporting a wide range of welding positions, including butt, lap, and fillet welds on both flat and inclined surfaces up to 10°. It is compatible with carbon steel, low-alloy steel, stainless steel, heat-resistant steel, and composite materials.

Applications:

Deep penetration welding for H-beam/column web plates

High-efficiency welding for box columns and beams

Longitudinal and circumferential seam welding for cylindrical components

High-efficiency splicing of medium and thick plates

Specifications:

1.1.1 MZ-DA Trolley

1.1.2 MZE AC Square Wave Submerged Arc Welding Machine

1.1.3 MZ Submerged Arc Welding Power Source

Competitive Advantage:

2.2× Higher Efficiency: Increases productivity significantly compared to traditional single-wire welding.

Versatile Welding Modes: Supports single-wire, dual-wire, and multi-wire welding with AC and DC power sources.

Stable & Reliable Output: Features automatic load compensation to maintain consistent arc performance.

Advanced Power Control: Three-phase circuit control for DC welding optimizes arc stability and power efficiency.

Flexible Welding Positions: Supports flat, horizontal, and inclined welding for complex structures.

Wide Material Compatibility: Suitable for various steel types, including carbon steel, stainless steel, and heat-resistant alloys.
