Description:

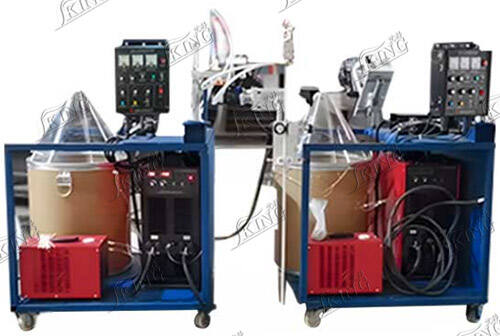

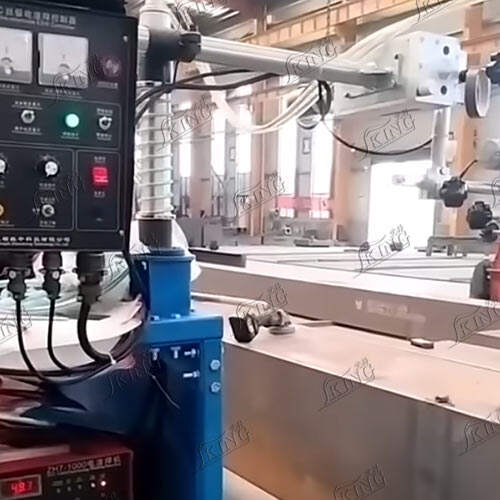

Wire pole electroslag welding machine is an electroslag welding equipment that uses welding wire as electrode, and the wire is fed into the slag pool through the non-consumable electroslag welding gun and conductive nozzle. It is mainly used for efficient welding of vertical weld seams in steel structures, and is especially suitable for the welding of box-type columns and box-type beam bulkheads. It can weld very thick workpieces at one time, with high welding speed, smooth welding process and not easy to produce spatter, with high deposition rate.
Applications:
1、Thickness of steel plate: 16-100mm
2、Grade of steel: low carbon steel, low alloy steel, medium carbon steel, refractory steel, etc.
3、Length of weld: Maximum 1680mm (depends on the length of electroslag welding torch)
4、Weld structure: T-type weld and butt weld Efficiency, high performance, stable and easy to operate
Specifications:
1.1.1 H7 Wire Electroslag Welding Power Source (IGBT)Power Source Specifications
1.1.2 ZH7 Wire Electroslag Welding Power Supply (IGBT)
Name |
Unit |
ZH7-1000 |
ZH7-1250 |
Weight |
KG |
95 |
105 |
Full Load Efficiency |
% |
89% |
89% |
Open Circuit Voltage |
V |
120 |
120 |
Rated Welding Voltage |
V |
60 |
60 |
Rated Input Current |
A |
128 |
160 |
Power Factor at Full Load |
- |
0.88 |
0.88 |
Rated Welding Current |
A |
1000 |
1200 |
Voltage Output Range |
V |
22-60 |
22-60 |
Current Output Range |
A |
90-1000 |
120-1200 |
Power Grid |
- |
- |
- |
Rated Input Power Capacity |
KVA |
>70 |
>85 |
Wire Feeder |
- |
- |
- |
Rated Duty Cycle |
% |
100 |
100 |
Welding Cable Cross-Section |
mm² |
140 or 70×2 |
140 or 70×2 |
Three-Phase Input Line Cross-Section |
mm² |
25 |
16 |
User Air Switch Capacity |
A/V |
250/380 |
250/380 |
Power Input Voltage/Frequency |
V/Hz |
AV3×380/50 |
AV3×380/50 |
External Dimensions (L×W×H) |
mm² |
823×371×840 |
823×371×840 |
1.1.3Electroslag Welding Gun Length
Please specify the model when ordering, as listed in the table below.
Model |
Electroslag Welding Gun Length |
ZHS (L) Applicable Weld Seam Length |
ZSN-10 |
1000mm |
720mm |
ZSN-12 |
1200mm |
920mm |
ZSN-14 |
1400mm |
1120mm |
ZSN-16 |
1600mm |
1320mm |
ZSN-18 |
1800mm |
1520mm |
ZSN-20 |
2000mm |
1720mm |
1.1.4Wire Feeder
Item |
Specification |
Item |
Specification |
Wire Feeder Motor Voltage |
24VDC |
Applicable Welding Wire Reel |
Φ300 × Φ50 × 103 |
Wire Feeding Speed Range |
1.5—15 m/min |
Wire Reel Capacity |
20kg |
Applicable Wire Diameter |
1.6mm |
Rated Traction Force |
15kg |
Total Weight |
9kg |
Dimensions (L×W×H) |
460 × 200 × 280 |
Competitive Advantage:
1、Small size and light weight.
ZH7 inverter slag welding machine is a high efficient and energy saving DC power source with IGBT inverter technology, which can weld carbon structural steel, low alloy structural steel, heat-resistant steel and its composite steel.
Add
2、Wide range of current adjustment.
3、Using IGBT inverter technology to ensure that the welding specification is highly stable when the grid voltage and load change.
4、With protection function to protect when over temperature or grid voltage is too low, and at the same time, the protection indicator light is on. With rectifier output abnormal alarm function.
5、Automatically stop the output if no arc is established within 1min of starting.
-ZH7-1000 power supply-
6、High efficiency and power factor, thus it has significant power saving effect and high grid utilisation.
Translated with www.DeepL.com/Translator (free version)
